G10.3 LED Flood Light is multi-purpose bright projection light .It can be turned on / off, dimming, RGB RGBW. The ambient temperature range is -40 ℃ ~ +55 ℃ .The flood light lifetime is longer than 50000 hours , waterproof Ip67.the surge protection is 6KV and a kind of insulation protection.

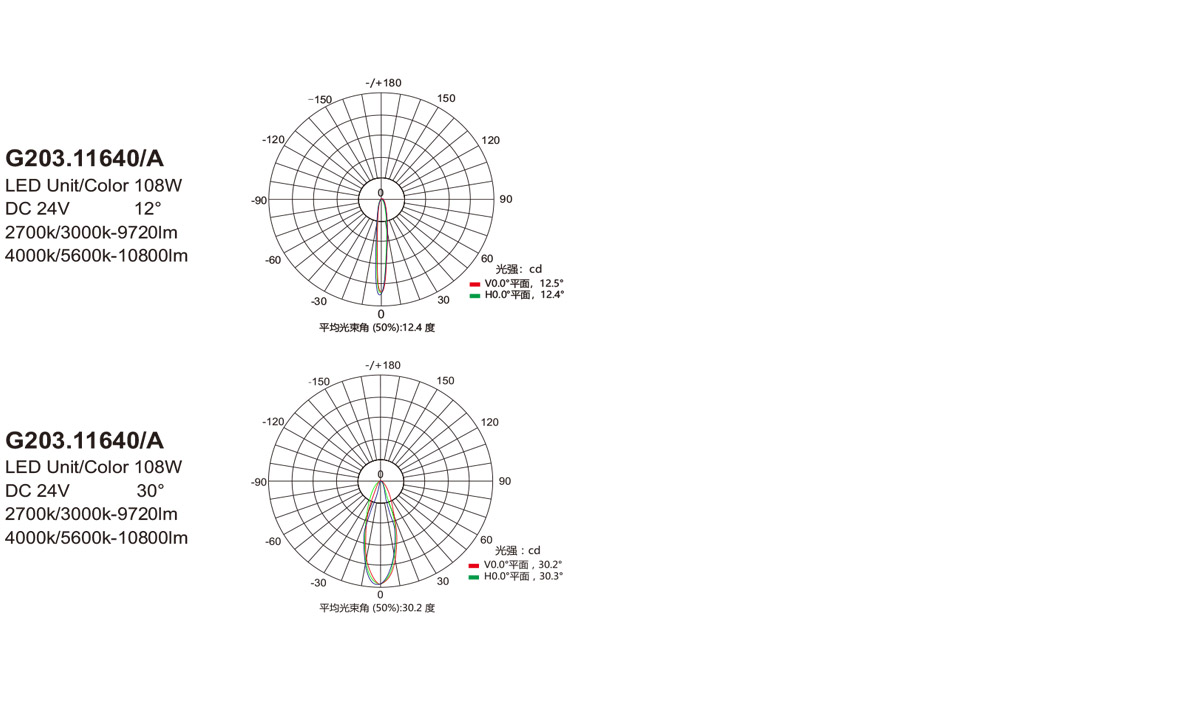

Light Distribution : Narrow angle spotlight, spotlight, middle angle glimmer and polarizing。
Material:Lamp shell -ADC12 is die-cast aluminum; The base bracket is aviation aluminum alloy lamp body;
The surface glass is 4mm ultra white steel safety glass and transmittance 93%
Surface Treatment: The three level hard anode oxidation process is adopted in military industry, and the thermal conductivity can reach 230W/m*K.
The lamp body is anti UV polyester powder, and outdoor grade spray series with anti UV10 years protection;
Driving Method : Built in constant current drive and automatic encoding on power and support RDM and high temperature overload protection.。
Installation : Built in constant current drive and automatic encoding on power and support RDM and high temperature overload protection.。

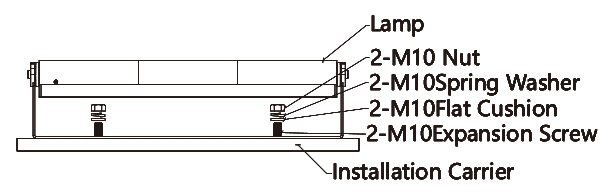

Installation :The lamp is equipped with SUS304 stainless steel bracket with gear locking function. The minimum adjustment angle is 5 per grid.Outlet wire 0.5m，
4pins wire 2 x0.75 mm2 + 2pins wire 2 x 0.5mm2 and 2 x1.5 mm2 rubber cable connector (Dimming ,RGB, RGBW version).Outlet wire 0.5m，2 pins
wire 2 x1.5 mm2 or 3 x1.5 mm2 rubber cable connector(ON/OFF version).
Option : Beam angle, surface spray colors ,anti-glare device and outlet wire length。
